amCharts 5

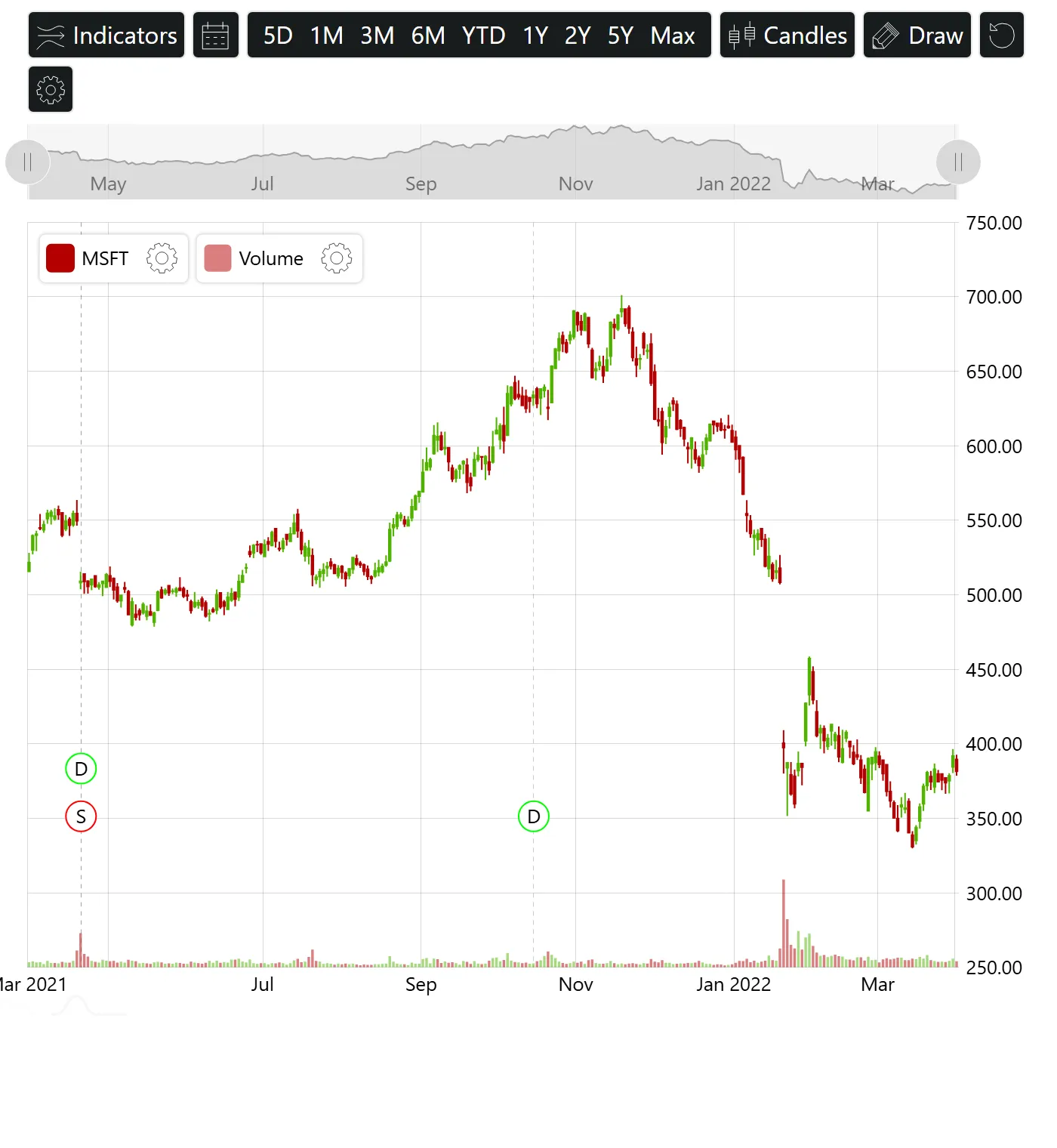

Stock toolbar

Stock toolbar is a tool bundled with our Stock chart that can hold a number of chart-related controls, built-in or custom.

Creating

Section titled “Creating”

A toolbar will need to be placed into its own container <div>, separate from the chart’s container.

<div id="chartcontrols"></div>
<div id="chartdiv"></div>

To create a toolbar we will need to instantiate a StockToolbar class, using its new() method.

let toolbar = am5stock.StockToolbar.new(root, {
  container: document.getElementById("chartcontrols"),
  stockChart: stockChart,
  controls: [
    // ...
  ]
});

To work properly it needs three settings to be set:

  • container - a reference to a <div> element to place toolbar elements in.
  • stockChart - a reference to our stock chart.
  • controls - a list of controls to put into toolbar (more about it later).

Controls

Section titled “Controls”

Adding controls

Section titled “Adding controls”

A toolbar is just a shell. To add actual functionality, we need to add controls designed for it.

Stock chart comes with a number of controls:

Class Comment
ComparisonControl A control designed to add additional series to compare against main series. Info
DataSaveControl Allows saving/restoring current annotations, as well as enabling auto-saving. Info

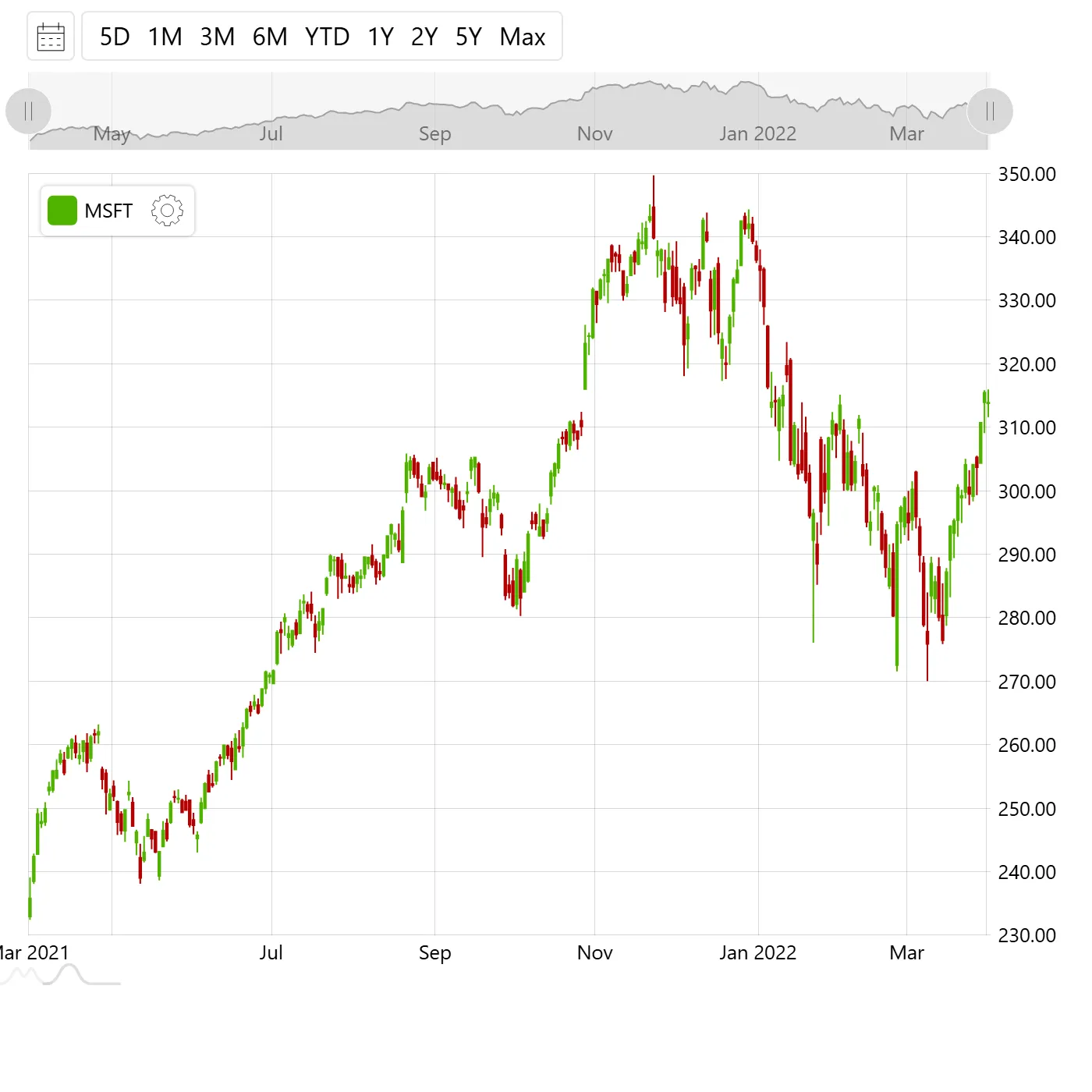

DateRangeSelector Allows selecting date range the chart to zoom to, using date picker. Info
DrawingControl Toggles drawing tools on and off. Puts chart into “annotation mode”. Info
IndicatorControl Allows adding technical indicators. Info
IntervalControl Allows switching data granularity. Info
PeriodSelector Displays a pre-defined list of periods for quick zoom of the chart. Info
ResetControl Removes all annotations and indicators added by user. Info
SeriesTypeControl Allows switching type of the main series. Info
SettingsControl Allows changing some settings of the chart, such as Y-axis scale and axis fills. Info

Besides these functional controls, stock chart offers generic controls that we can use to add custom functionality:

Class Comment
DropdownListControl A control that can be used to add searchable list of any item for selection. Info
StockControl A simple clickable or togglable button. Info

Some controls are completely automated, while some will require custom code attached to its events for proper implementation.

All controls require stockChart set to an instance of the stock chart they are used for.

let toolbar = am5stock.StockToolbar.new(root, {
  container: document.getElementById("chartcontrols"),
  stockChart: stockChart,
  controls: [
    am5stock.DrawingControl.new(root, {
      stockChart: stockChart
    }),
    am5stock.ResetControl.new(root, {
      stockChart: stockChart
    }),
    am5stock.SettingsControl.new(root, {
      stockChart: stockChart
    })
  ]
});

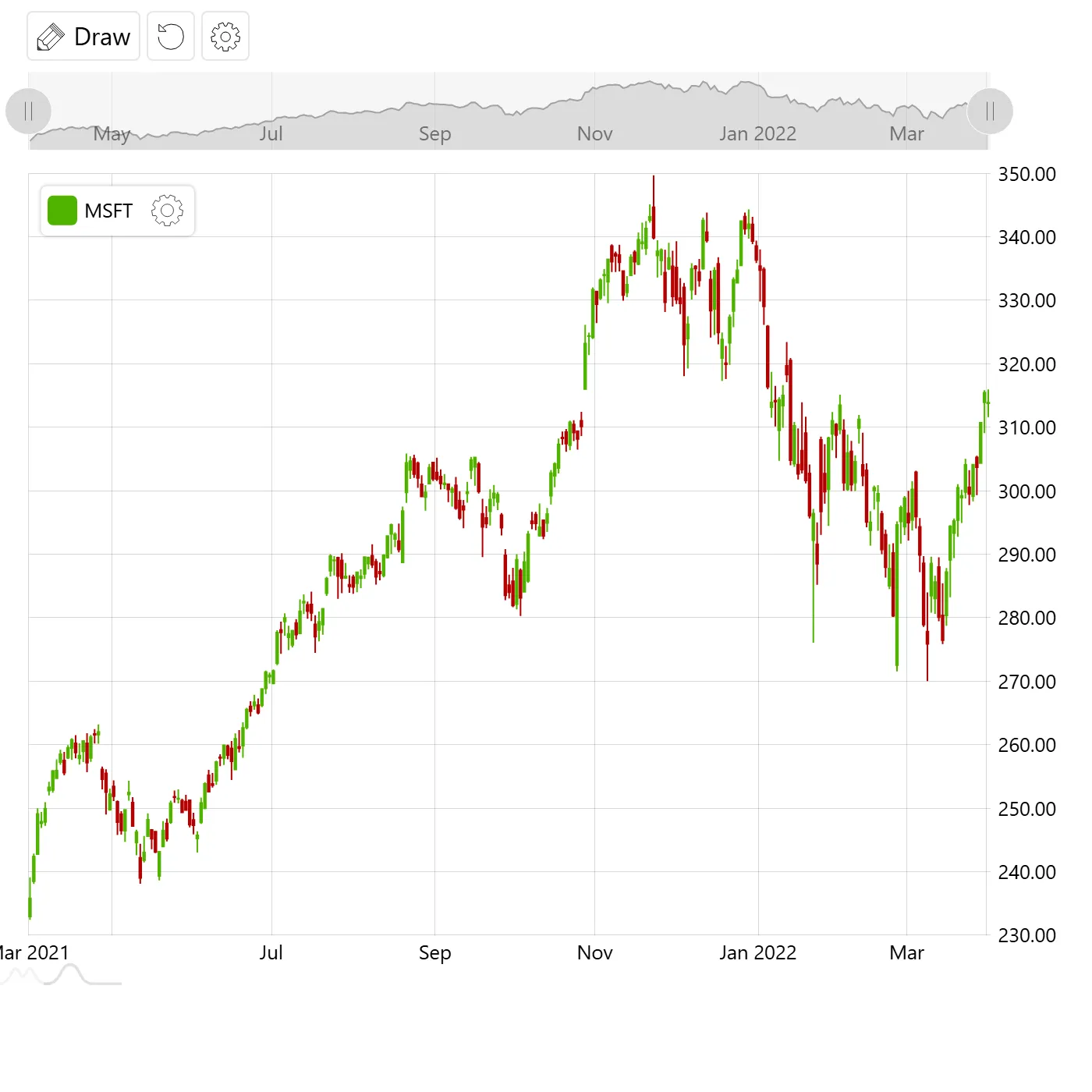

The above code will add three controls: drawing control which toggles annotation tools, as well as reset and settings controls.

Open in:New tab
Stock chart controlsstock-chart-controls

Configuring controls

Section titled “Configuring controls”

As we mentioned before, some controls work without any configuration out-of-the-box, whereas others require additional custom code or configuration.

As an example, SeriesTypeControl control cannot change type of the series itself. It will rely on developer configuring an event handler which, when user selects new series type, destroys the old series, creates a new one, and sets it on the stock chart.

let seriesSwitcher = am5stock.SeriesTypeControl.new(root, {
  stockChart: stockChart
});


seriesSwitcher.events.on("selected", function(ev) {
  setSeriesType(am5.type.isString(ev.item) ? ev.item : ev.item.id);
});


function setSeriesType(seriesType) {
  // Remove previous series
  let currentSeries = stockChart.get("stockSeries");
  let data = currentSeries.data.values;
  mainPanel.series.removeValue(currentSeries);


  // Create new series
  let series;
  switch (seriesType) {
    case "line":
      series = mainPanel.series.push(am5xy.LineSeries.new(root, {
        // ...
      }));
      break;
    case "candlestick":
    case "procandlestick":
      series = mainPanel.series.push(am5xy.CandlestickSeries.new(root, {
        // ...
      }));
      if (seriesType == "procandlestick") {
        series.columns.template.get("themeTags").push("pro");
      }
      break;
    case "ohlc":
      series = mainPanel.series.push(am5xy.OHLCSeries.new(root, {
        // ...
      }));
      break;
  }


  // Set new series as stockSeries
  if (series) {
    valueLegend.data.removeValue(currentSeries);
    series.data.setAll(data);
    stockChart.set("stockSeries", series);
    const cursor = mainPanel.get("cursor");
    if (cursor) {
      cursor.set("snapToSeries", [series]);
    }
    valueLegend.data.insertIndex(0, series);
  }
}
Open in:New tab
Stock chart controls + series type controlstock-chart-controls-series-type-control

Accessibility

Section titled “Accessibility”

The toolbar can be used with a keyboard: TAB moves between its buttons, and arrow keys move through lists.

To turn it off, set focusable: false:

let toolbar = am5stock.StockToolbar.new(root, {
  container: document.getElementById("chartcontrols"),
  stockChart: stockChart,
  focusable: false,
  controls: [
    // ...
  ]
});

Styling controls

Section titled “Styling controls”

The toolbar controls are all DOM elements, that can be targeted via CSS to override their look.

The following CSS will make toolbar’s button dark green:

#chartcontrols .am5stock-control-button {
  background: #171c1c;
  color: #fff;
}


#chartcontrols .am5stock-control-button:hover {
  background: #98AEAB;
  color: #171c1c;
}


#chartcontrols .am5stock-control-icon path {
  stroke: #fff;
}


#chartcontrols .am5stock-control-button:hover .am5stock-control-icon path {
  stroke: #171c1c!important;
}

As you can see, various elements can be targeted using built-in class names.

The following table lists a few of those.

Class name Comment
am5stock-control Wrapper for any control.
am5stock-control-button Button wrapper.
am5stock-control-dropdown Dropdown wrapper.
am5stock-control-icon Icon in the button.
am5stock-control-label Label.

There are more. We suggest right-clicking on any toolbar element, and selecting “Inspect element” item, which would open up browser’s DOM tool.

You can use it to explore actual structure of the toolbar’s elements, their assigned class names, and built-in CSS that affects it.

Here’s an example:

Open in:New tab
Customizing colors of a StockToolbarcustomizing-colors-of-a-stocktoolbar
